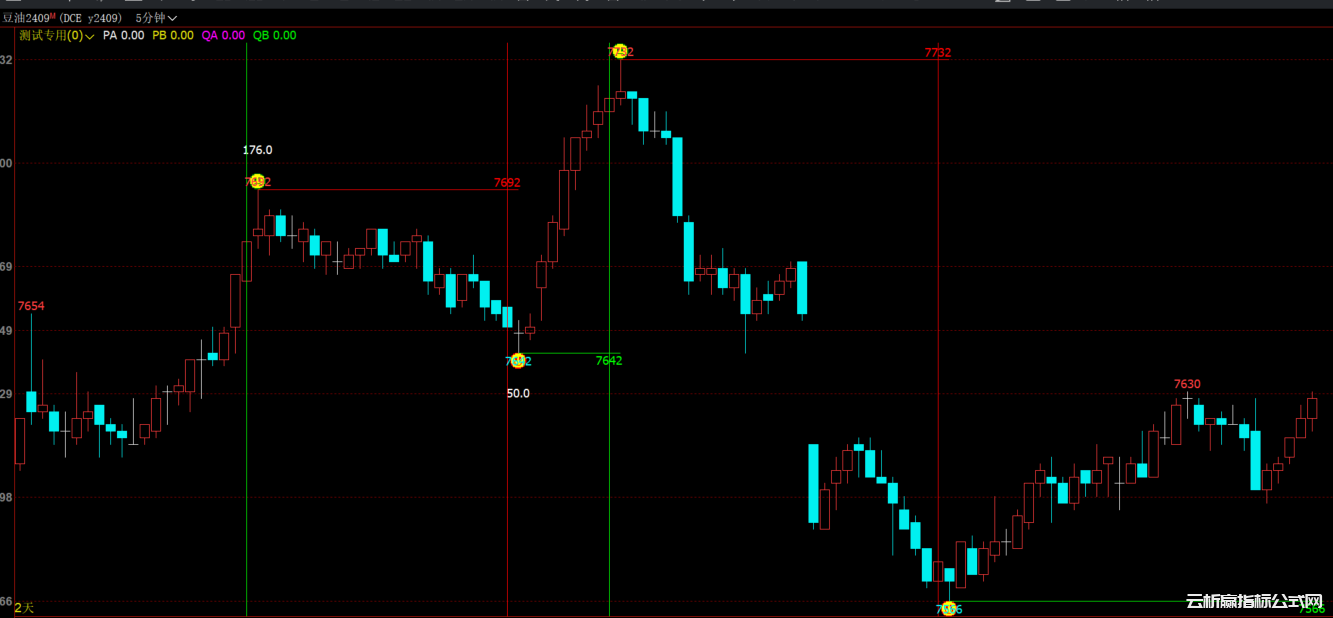

文华财经期货高低点画竖线顶底多空转折主图指标公式源码：
MM:=5;
M:=20;
G:=MA(C,5);
D:=MA(C,10);
NNH:=BARSLAST(H=HHV(H,M)) ,NODRAW;
NNL:=BARSLAST(L=LLV(L,M)) ,NODRAW;
NN:=IF(REF(G,NNH)>REF(D,NNH) AND NNH<=M-3,NNH,IF(REF(G,NNL)<REF(D,NNL) AND NNL<=M-3,NNL,M-2)) ,NODRAW;
NNN:=IF(ISLASTBAR AND NN>0,NN,M-2) ,NODRAW;
H1:=REF(H,NNN)=HHV(H,M-1);
L1:=REF(L,NNN)=LLV(L,M-1);
FG01:=BACKSET(H1,NNN+1)>BACKSET(H1,NNN),NODRAW;//只设置前面第M-1个
FD01:=BACKSET(L1,NNN+1)>BACKSET(L1,NNN) ,NODRAW;
FG02:=FG01=FD01 AND G>D,NODRAW;
FD02:=FG01=FD01 AND G<D,NODRAW;
TTTT:=BARSLAST(FD01),NODRAW;
FG0:=FG01 AND IF(FG02=1,H=HHV(H,BARSLAST(REF(FD01,1))+1),H=HHV(H,IF(BARSLAST(L=LLV(L,M))>=M-2,M-2,BARSLAST(FD01)))) AND FD02=0 ,NODRAW;
FD0:=FD01 AND IF(FD02=1,L=LLV(L,BARSLAST(REF(FG01,1))+1),L=LLV(L,IF(BARSLAST(H=HHV(L,M))>=M-2,M-2,BARSLAST(FG01)))) AND FG02=0 ,NODRAW;
//高低点间周期
GT:=BARSLAST(FG0),NODRAW;
DT:=BARSLAST(FD0),NODRAW;
//第一次处理高低点间多余的点
LLLL:=DT=0 AND REF(DT,1)<GT AND L>REF(L,REF(DT,1)+1),NODRAW;
FG1:=BACKSET(REFX(GT,1)=0 AND GT<DT AND REFX(H,1)>=REF(H,GT),GT+1),NODRAW;
FD1:=BACKSET(REFX(DT,1)=0 AND DT<GT AND REFX(L,1)<=REF(L,DT),DT+1),NODRAW;
FG11:=IF(GT=0 AND REF(GT,1)<DT AND IF(REF(G,BARSLAST(L=LLV(L,M)))>REF(D,BARSLAST(L=LLV(L,M))),BARSLAST(L=LLV(L,M))<M-2,1) AND H<REF(H,REF(GT,1)+1),1,0),NODRAW;
FD11:=IF(DT=0 AND REF(DT,1)<GT AND IF(REF(G,BARSLAST(H=HHV(H,M)))<REF(D,BARSLAST(H=HHV(H,M))),BARSLAST(H=HHV(H,M))<M-2,1) AND L>REF(L,REF(DT,1)+1),1,0),NODRAW;
//再次周期
GT1:=BARSLAST(FG11<>1 AND FG1<>1 AND FG0),NODRAW;
DT1:=BARSLAST(FD11<>1 AND FD1<>1 AND FD0),NODRAW;
FD2:=BACKSET(REFX(GT1,1)=0 AND DT1<3 AND GT1-DT1<4 AND REF(L,DT1)>LLV(L,GT1+M-2),DT1+1),NODRAW;
FG2A:=BACKSET(REFX(GT1,1)=0 AND DT1<3 AND GT1-DT1<4 AND REF(L,DT1)<=LLV(L,GT1+M-2) AND REF(H,GT1)>HHV(H,GT1+M-2),GT1+1),NODRAW;
FG2B:=IF(GT1=0 AND DT1<4 AND REF(GT1,1)-DT1<4 AND REF(L,DT1)<=LLV(L,REF(GT1,1)+M-1) AND H>HHV(H,REF(GT1,1)+M-1),1,0),NODRAW;
FG2:=BACKSET(REFX(DT1,1)=0 AND GT1<3 AND DT1-GT1<4 AND REF(H,GT1)<HHV(H,DT1+M-2),GT1+1),NODRAW;
FD2A:=BACKSET(REFX(DT1,1)=0 AND GT1<3 AND DT1-GT1<4 AND REF(H,GT1)>=HHV(L,DT1+M-2) AND REF(L,DT1)>LLV(L,DT1+M-2),DT1+1),NODRAW;
FD2B:=IF(DT1=0 AND GT1<4 AND REF(DT1,1)-GT1<4 AND REF(H,GT1)>=HHV(H,REF(DT1,1)+6) AND L>LLV(L,REF(DT1,1)+M-1),1,0),NODRAW;
TTTTTT:= H<REF(H,REF(GT1,1)+1) AND DT1<4,NODRAW;
HHHHHH:=REF(LLV(L,10),DT1),NODRAW;
//前长后短;
FG21:=IF(GT1=0 AND DT1<4 AND H<=REF(H,REF(GT1,1)+1) ,1,0),NODRAW;
FD21:=IF(DT1=0 AND GT1<4 AND L>=REF(L,REF(DT1,1)+1) ,1,0),NODRAW;
//前短后长,前低后高（去低）;
FD231:=BACKSET(REFX(GT1,1)=0 AND DT1>3 AND GT1>DT1 AND GT1-DT1<4 AND REFX(H,1)>REF(H,GT1) AND REF(L,DT1)>REF(LLV(L,10),DT1),DT1+1),NODRAW;
FG23:=BACKSET(REFX(GT1,1)=0 AND DT1>3 AND GT1>DT1 AND GT1-DT1<4 AND REFX(H,1)>REF(H,GT1) AND (REF(H,GT1)<REF(HHV(H,13),GT1) OR REF(FD231,DT1)=0),GT1+1),NODRAW;
//前短后长，去2;
FG231:=BACKSET(REFX(DT1,1)=0 AND GT1>3 AND DT1>GT1 AND DT1-GT1<4 AND REFX(L,1)<REF(L,DT1) AND REF(H,GT1)<REF(HHV(H,10),GT1) ,GT1+1),NODRAW;
FD23:=BACKSET(REFX(DT1,1)=0 AND GT1>3 AND DT1>GT1 AND DT1-GT1<4 AND REFX(L,1)<REF(L,DT1) AND ( REF(L,DT1)>REF(LLV(L,13),DT1) OR REF(FG231,GT1)=0),DT1+1),NODRAW;
//前短后长，去3;
FDD23:=REF(H,GT1)<REF(HHV(H,10),GT1) OR REF(FD23,DT1)=0,NODRAW;
FD24:=BACKSET(REFX(GT1,1)=0 AND DT1>3 AND GT1>DT1 AND GT1-DT1<4 AND REFX(H,1)<HHV(H,GT1+3) AND REF(L,DT1)>LLV(L,DT1+5),DT1+1),NODRAW;
FG24:=BACKSET(REFX(DT1,1)=0 AND GT1>3 AND DT1>GT1 AND DT1-GT1<4 AND REFX(L,1)>LLV(L,DT1+3) AND REF(H,GT1)<HHV(H,GT1+5),GT1+1),NODRAW;
//做两次高低点间多余的点
GT2:=BARSLAST(FG21<>1 AND FG23<>1 AND FG231<>1 AND FG24<>1 AND FG2<>1 AND FG2A<>1 AND FG2B<>1 AND GT1=0),NODRAW;
DT2:=BARSLAST(FD21<>1 AND FD23<>1 AND FD231<>1 AND FD24<>1 AND FD2<>1 AND FD2A<>1 AND FD2B<>1 AND DT1=0),NODRAW;
FG3:=BACKSET(REFX(GT2,1)=0 AND GT2<DT2 AND REFX(H,1)>=REF(H,GT2),GT2+1),NODRAW;
FD3:=BACKSET(REFX(DT2,1)=0 AND DT2<GT2 AND REFX(L,1)<=REF(L,DT2),DT2+1),NODRAW;
FG31:=IF(GT2=0 AND REF(GT2,1)<DT2 AND H<REF(H,REF(GT2,1)+1),1,0),NODRAW;
FD31:=IF(DT2=0 AND REF(DT2,1)<GT2 AND L>REF(L,REF(DT2,1)+1),1,0),NODRAW;
GT3:=BARSLAST(GT2=0 AND FG3<>1 AND FG31<>1 ),NODRAW;
DT3:=BARSLAST(DT2=0 AND FD3<>1 AND FD31<>1),NODRAW;
FG4:=BACKSET(REFX(GT3,1)=0 AND GT3<DT3 AND REFX(H,1)>=REF(H,GT3),GT3+1),NODRAW;
FD4:=BACKSET(REFX(DT3,1)=0 AND DT3<GT3 AND REFX(L,1)<=REF(L,DT3),DT3+1),NODRAW;
FG41:=IF(GT3=0 AND REF(GT3,1)<DT3 AND H<REF(H,REF(GT3,1)+1),1,0),NODRAW;
FD41:=IF(DT3=0 AND REF(DT3,1)<GT3 AND L>REF(L,REF(DT3,1)+1),1,0),NODRAW;
HHH:=GT3=0 AND FG31<>1 AND FG3<>1,NODRAW;
LLL:=DT3=0 AND FD31<>1 AND FD3<>1,NODRAW;
//DRAWLINE1(HHH ,H,LLL,L,0),COLORGREEN,LINETHICK3;//绿色
//DRAWLINE1(LLL,L,HHH ,H,0),COLORRED,LINETHICK3;//红色
//最后一段画线
N1:=BARSLAST(HHH)+1;
N2:=BARSLAST(LLL)+1;
//DRAWLINE3(ISLASTBAR&&MIN(N1,N2)=N2&&L>REF(L,N2-1),REF(L,N2-1),N2-1,ISLASTBAR,H,0,0),COLORRED,LINETHICK3;//红色
//DRAWLINE3(ISLASTBAR&&MIN(N1,N2)=N1&&H<REF(H,N1-1),REF(H,N1-1),N1-1,ISLASTBAR,L,0,0),COLORGREEN,LINETHICK3;//绿色
DRAWNUMBER1(HHH,H+MM*MINPRICE,ABS(H-VALUEWHEN(LLL,L)),1);
DRAWNUMBER1(LLL,L-MM*MINPRICE,ABS(L-VALUEWHEN(HHH,H)),1),VALIGN0;
A:=H>REF(H,1)&&H>REFX(H,1)&&L>REF(L,1)&&L>REFX(L,1)&&C<O;
AA:=H<REF(H,1)&&H<REFX(H,1)&&L<REF(L,1)&&L<REFX(L,1)&&C>O;
DRAWICON(HHH,H,2);
DRAWICON(LLL,L,1),VALIGN0;
Z:=IF(HHH,H,L);
//DRAWHORIZONTALLINE(REF(HHH||LLL,1),REF(Z,1),COLORYELLOW);
DRAWSL(BARSLAST(HHH)<BARSLAST(LLL),REF(H,BARSLAST(HHH)),0,1,0,COLORRED);
DRAWSL(BARSLAST(HHH)>BARSLAST(LLL),REF(L,BARSLAST(LLL)),0,1,0,COLORGREEN);
VERTLINE(REFX(HHH,1),COLORGREEN);
VERTLINE(REFX(LLL,1),COLORRED);
DRAWNUMBER(REFX(HHH,1)||ISLASTBAR&&BARSLAST(HHH)>BARSLAST(LLL),REF(L,BARSLAST(LLL)),REF(L,BARSLAST(LLL)),0,COLORGREEN),VALIGN0;
DRAWNUMBER(REFX(LLL,1)||ISLASTBAR&&BARSLAST(HHH)<BARSLAST(LLL),REF(H,BARSLAST(HHH)),REF(H,BARSLAST(HHH)),0,COLORRED);
XX:=BARSLAST(HHH)<BARSLAST(LLL)&&L<LV(L,BARSLAST(HHH)),ICON(0,’ICO145′),VALIGN0;
XX1:=BARSLAST(HHH)<BARSLAST(LLL)&&EXIST(XX,BARSLAST(HHH))&&REFX(XX||ISLASTBAR&&BARSLAST(HHH)<BARSLAST(LLL),1)&&EXIST(H>VALUEWHEN(XX,H),BARSLAST(XX)+1),ICON(1,’ICO12′);
//DRAWSL( CROSS( BACKSET(XX1,HHVBARS(H,BARSLAST(XX)+1)+1),0.5),H,0,5,0,COLORGREEN);
YY:=BARSLAST(HHH)>BARSLAST(LLL)&&H>HV(H,BARSLAST(LLL)),ICON(0,’ICO145′),VALIGN0;
YY1:=BARSLAST(HHH)>BARSLAST(LLL)&&EXIST(YY,BARSLAST(LLL))&&REFX(YY||ISLASTBAR&&BARSLAST(HHH)>BARSLAST(LLL),1)&&EXIST(L<VALUEWHEN(YY,L),BARSLAST(YY)+1),ICON(1,’ICO12′);
//DRAWSL( CROSS( BACKSET(YY1,LLVBARS(L,BARSLAST(YY)+1)+1),0.5),L,0,5,0,COLORRED);PA:CROSS(COUNT(CROSS(BACKSET(XX1,HHVBARS(H,BARSLAST(XX)+1)+1),0.5),BARSLAST(HHH))=1,0.5);
PB:CROSS(BACKSET(PA,LLVBARS(L,BARSLAST(HHH))+1),0.5);
QA:CROSS(COUNT(CROSS( BACKSET(YY1,LLVBARS(L,BARSLAST(YY)+1)+1),0.5),BARSLAST(LLL))=1,0.5);
QB:CROSS(BACKSET(QA,HHVBARS(H,BARSLAST(LLL))+1),0.5);
